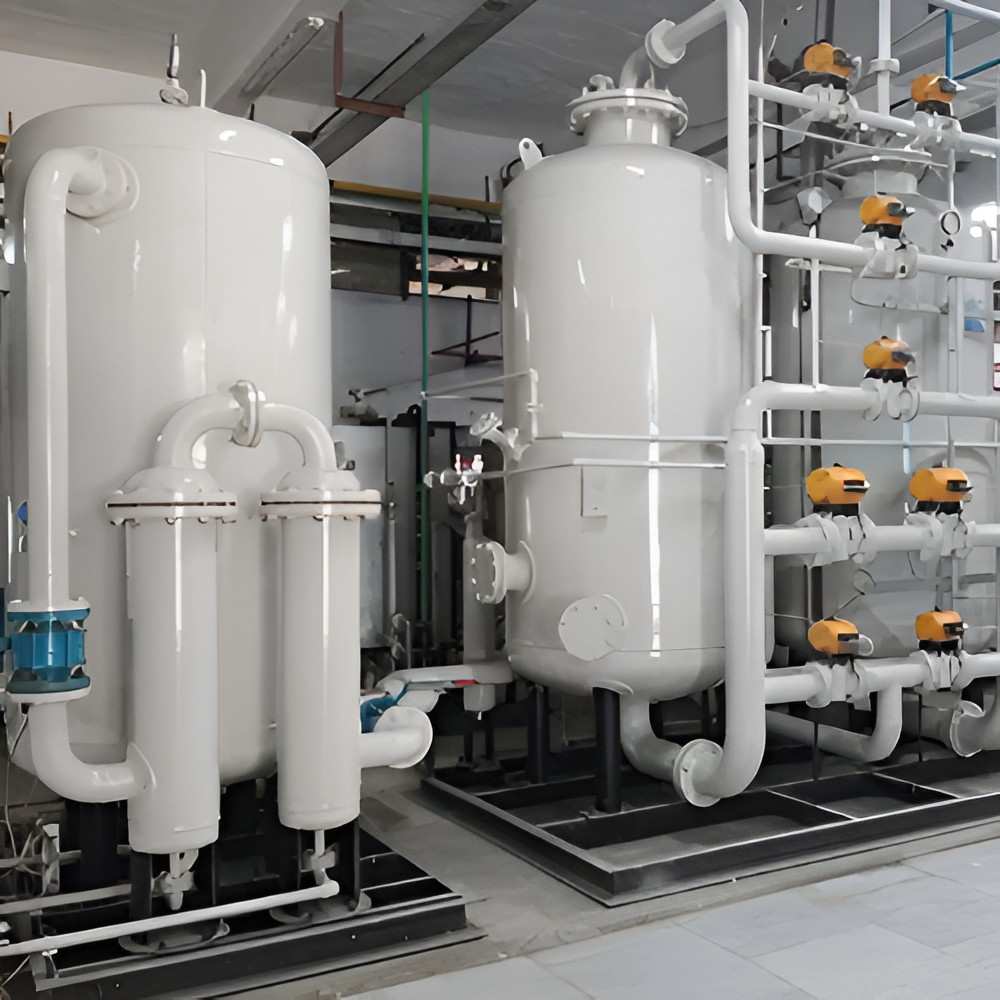

PSA NITROGEN GAS PLANT
JOG Waste PSA Nitrogen Gas Plant separates the nitrogen in the ambient air from the other gases by utilizing the Pressure Swing Adsorption (PSA) technology.
The Compressed, clean, and dry air is transferred to a molecular sieve bed during the PSA process, which allows nitrogen to pass through as a product gas and adsorbs other gases present in the air. The sieve releases the adsorbed gases to the atmosphere when the outlet valve is closed and the bed pressure recovers to ambient pressure. The bed will then be purged with nitrogen before fresh compressed air is introduced for a new production cycle. JOG Waste nitrogen plants feature two molecular sieve beds that alternately switch between the adsorption and regeneration phases to ensure a steady product flow. The needed purity, volume, and consumption pattern all influence the choice of production method.
Let’s transform the world together.
TECHNICAL FACTS
FLOW RANGE
Appropriate for flows between 5 and 2000 Nm3/hr. Several PSA units can be used to achieve larger flows.
DEW POINT
Our JOG Waste PSA Nitrogen Gas Plant produce nitrogen gas that is extremely dry, with a dew point as low as (-) 80°C. We also provide measuring tools for online gas dryness detection if required.
NITROGEN PURITY
Using a straightforward PSA device, purity is immediately achievable between 98% and 99.999%. In order to achieve higher assured purity levels up to 99.9999%, we advise using our DX or Copper-DX versions.
PRESSURE
The majority of users will find a system providing nitrogen at a pressure of 5 kg/cm2g to be perfectly adequate. We can deliver nitrogen directly up to 10 kg/cm2g pressure without any additional booster compressor.
PSA NITROGEN GAS PLANT
We JOG-Waste one of the top and recognized manufacturers of PSA Nitrogen plants, provide excellent service. Since the beginning, we have continually provided a wide range of PSA nitrogen plants for different industrial and manufacturing facilities in PAN India and Abroad. All our JOG-Waste PSA Nitrogen Gas plant is generally praised and trusted by our clients due to attributes including strong design, high performance, high nitrogen purity, superior functionality, and longer service life. Being one of the leading PSA Nitrogen Plant Manufacturers in Ahmedabad, Gujarat – INDIA, we have created a cutting-edge production facility outfitted with the most up-to-date manufacturing tools and methods, enabling us to offer products with the highest precision and a longer lifespan. We JOG-Waste are a reputable manufacturer of PSA nitrogen plants in Gujarat. We JOG-Waste are aware of the various needs and particular difficulties that our clients confront. To meet the unique requirements of our clients, our offered nitrogen gas plants are affordable and available in a range of specifications.
manufacturer and supplier
Why Choose JOG Waste as a PSA Nitrogen Gas Plant Manufacturers?
One of the top manufacturers of PSA Nitrogen Gas Plants.
We operate in a technologically and scientifically advanced setting. The goal of the JOG Waste Gas Plant was to provide plants for a range of gases and applications.
To provide well-engineered PSA Nitrogen Gas Generator Manufacturers that are built using cost-effective sophisticated technology, we are working with a team of highly skilled experts.

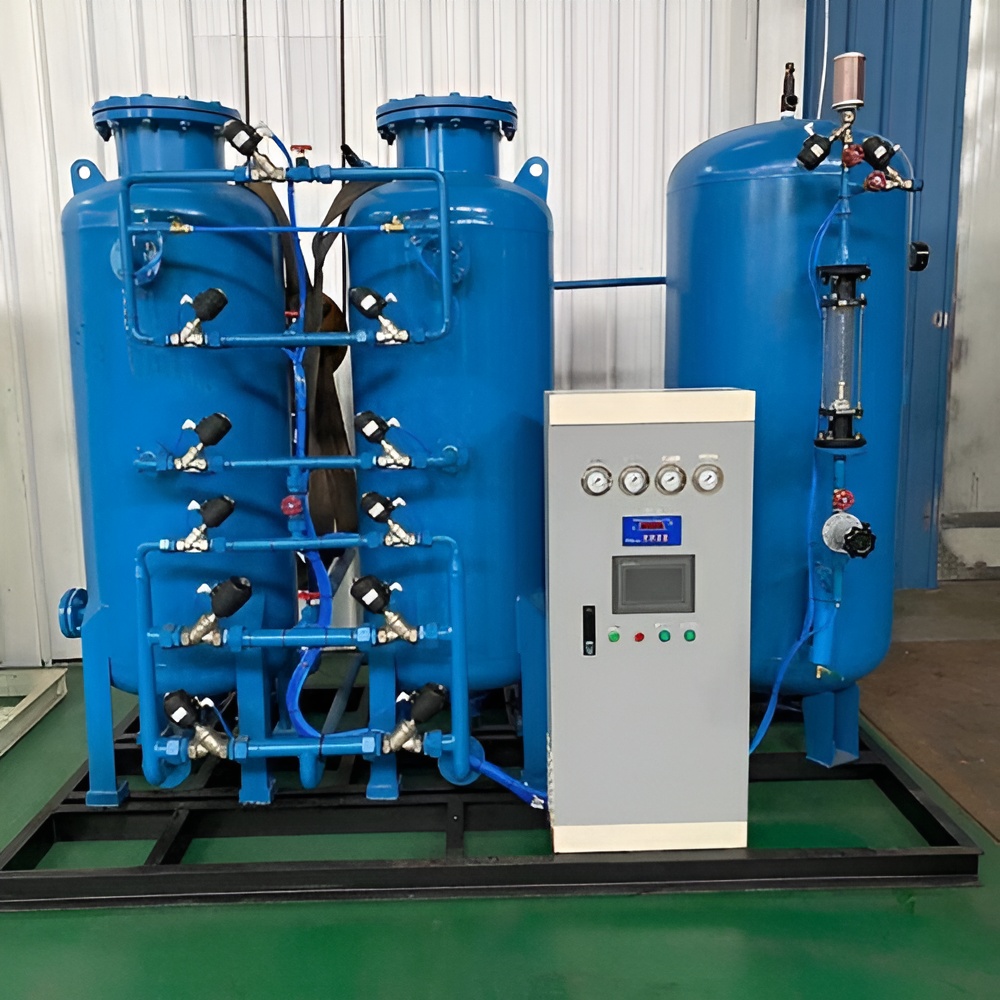

These PSA Nitrogen Gas Plants were constructed for the separation process using a tested technology that results in a program that is successful and efficient. They are made up of two towers filled with molecular sieves and alumina and squeezed at a temperature of 30 °C. This draws out the oxygen, and the nitrogen from the exhausted gas is released into the temperature. These nitrogen gas plants are built in a small size to take up less room. They have been thoroughly tested with technical equipment and are made to be used-reliable. It was designed to use the least amount of power and require the least amount of maintenance. We are providing them in an affordable range and of the highest caliber.
CHARACTERISTICS
WORKING PRINCIPAL OF PSA OXYGEN GENERATOR
A portion or the entirety of the nitrogen will remain in the bed if a gas combination, such as air, is forced under pressure through a vessel containing an adsorbent bed of zeolite that attracts nitrogen more strongly than oxygen, resulting in an enriched oxygen content in the gas that exits the vessel. Regenerating the bed involves lowering the pressure, which releases the adsorbed nitrogen when the bed has used up all of its ability to adsorb nitrogen. The next cycle of creating oxygen-enriched air can now begin.
- Operating pressure - 7.5 to 10 bar
- Operating temperature range - 5 to 50 °C
- Ambient air temperature range - Up to 40 °C
- Dew points (atmospheric) - < -80°C
- Capacity - 5 to 2000 Nm3/h
- Purity Up to - 99.9999 %
PSA NITROGEN GAS PLANT MANUFACTURERS – JOG WASTE
As a well-known PSA Nitrogen Plant Manufacturer in India, JOG-Waste places a strong emphasis on upholding the highest standards of excellence in all of the goods and services we offer, and we work hard to give our customers long-term advantages. Our JOG-Waste PSA Nitrogen Plants are developed and produced using cutting-edge pressure swing adsorption technology, and best-in-class raw materials that are ethically procured from the industry’s most reliable suppliers.

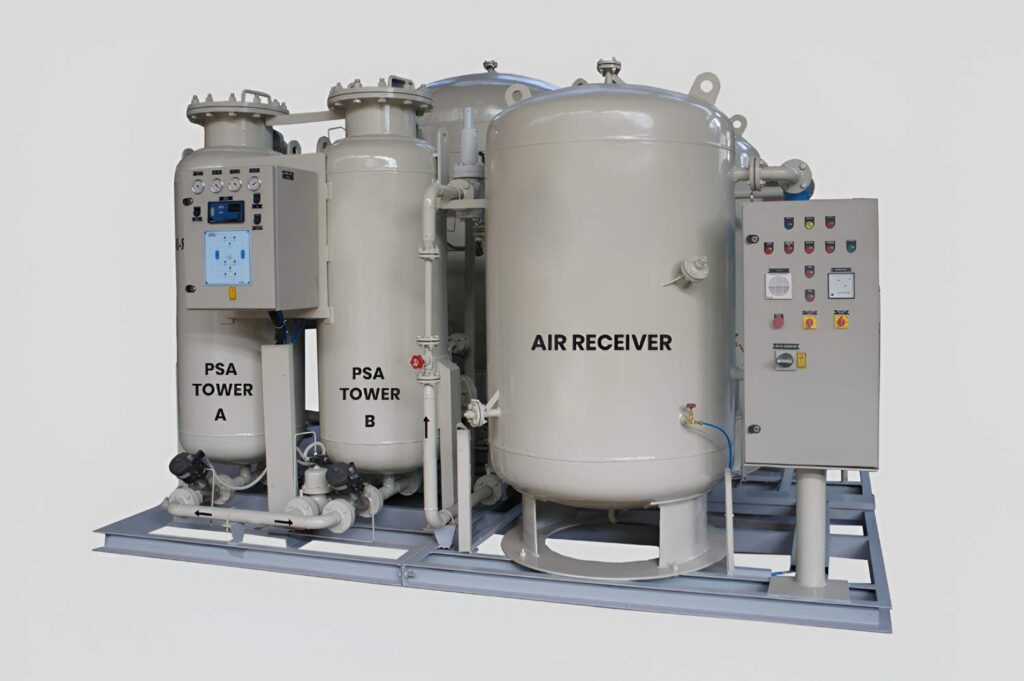

In the PSA process, two jars are filled with activated alumina and carbon molecular sieves (CMS). Nitrogen is produced as a gas as clean compressed air passes through one vessel. The exhaust gas, which contains oxygen, is released back into the atmosphere. As the molecular sieve bed becomes saturated, the mechanism automatically transfers nitrogen generation to the other bed and allows the saturated bed to regenerate by depressurizing and purging to atmospheric pressure. Consequently, two vessels continue cycling in opposite directions for nitrogen production and regeneration, ensuring that nitrogen gas is always available for your process.
The PSA method uses CMS to remove the 78% nitrogen that makes up atmospheric air from the atmosphere.
industries we serve
Major Applications of PSA nitrogen Gas Plant
- Blanketing of Chemicals
- Gas Assisted Injection Moldings
- Heat Treatment of Ferrous & Non-Ferrous Metals
- Inserting of Flammable Liquids Laser Cutting
- Prevention of Dust Explosions
- Re-flow and Wave Soldering of PCBs
- UV-Curing of Coating
- More than 1000 Plants based on PSA Technology operating successfully in India
- Food processing
- Easy to install and maintain
- Generates Nitrogen as and when required
- Fully Automatic Operation requiring no special attention
- Proven Technology
- Purity of Nitrogen up to 99.9999% can be achieved
- Generates Nitrogen at almost 1/10th cost of cylinder nitrogen
Manufacturer and supplier
We JOG Waste one of the top and recognized manufacturers of PSA Nitrogen plants, provide excellent service. Since the beginning, we have continually provided a wide range of PSA nitrogen plants for different industrial and manufacturing facilities in PAN India and Abroad. All our JOG Waste PSA Nitrogen Gas plants are generally praised and trusted by our clients due to attributes including strong design, high performance, high nitrogen purity, superior functionality, and longer service life. Being one of the leading PSA Nitrogen Plant Manufacturers in Ahmedabad, Gujarat – INDIA, we have created a cutting-edge production facility outfitted with the most up-to-date manufacturing tools and methods, enabling us to offer products with the highest precision and a longer lifespan. We JOG Waste are a reputable manufacturer of PSA nitrogen plants in Gujarat. We JOG Waste are aware of the various needs and particular difficulties that our clients confront. To meet the unique requirements of our clients, our offered nitrogen gas plants are affordable and available in a range of specifications.
As a well-known PSA Nitrogen Plant Manufacturer in India, we JOG Waste place a strong emphasis on upholding the highest standards of excellence in all of the goods and services we offer, and we work hard to give our customers long-term advantages. Our JOG Waste PSA Nitrogen Plants are developed and produced using cutting-edge pressure swing adsorption technology, and best-in-class raw materials that are ethically procured from the industry’s most reliable suppliers. Additionally, our JOG Waste Nitrogen Plants are completely autonomous and run without interference, resulting in hassle-free operations. As one of the renowned PSA Nitrogen Plant Exporters in India, we primarily focus on achieving preset quality and performance standards and parameters. We collaborate with a team of skilled experts, engineers, technicians, and quality analysts who have years of industry experience. For customers wishing to lower their gas bills, they are committed to offering the highest-quality items and coming up with the greatest solutions. Our JOG Waste PSA Nitrogen plants are of the highest caliber and adhere to the established standards.
Also, the risk of handling high-pressure cylinders or bottles is eliminated by our PSA Nitrogen units, which also aid in streamlining industrial procedures. As a result, we have established reliable business relationships and are regarded as a prominent PSA Nitrogen Plant Supplier in India.
Because of our years of experience in this field, we JOG Waste are now known all over the world as a top supplier and exporter of PSA Nitrogen Plants. We collaborate closely with clients to give a precise and specialized selection of items. We JOG Waste have built unshakeable customer loyalty and unflinching trust by consistently delivering the desired and tailored PSA Oxygen Plants and other systems to meet the unique needs of our clients. The highest purity raw nitrogen gas is produced by our JOG Waste PSA Nitrogen plants, which are of the highest caliber, adhere to industry requirements, and produce. Also, we adhere to the principle that quality is always of the utmost significance to our firm at every level of manufacturing. Before being sent out in the end, each of our PSA Nitrogen Plants is rigorously tested on several parameters.
