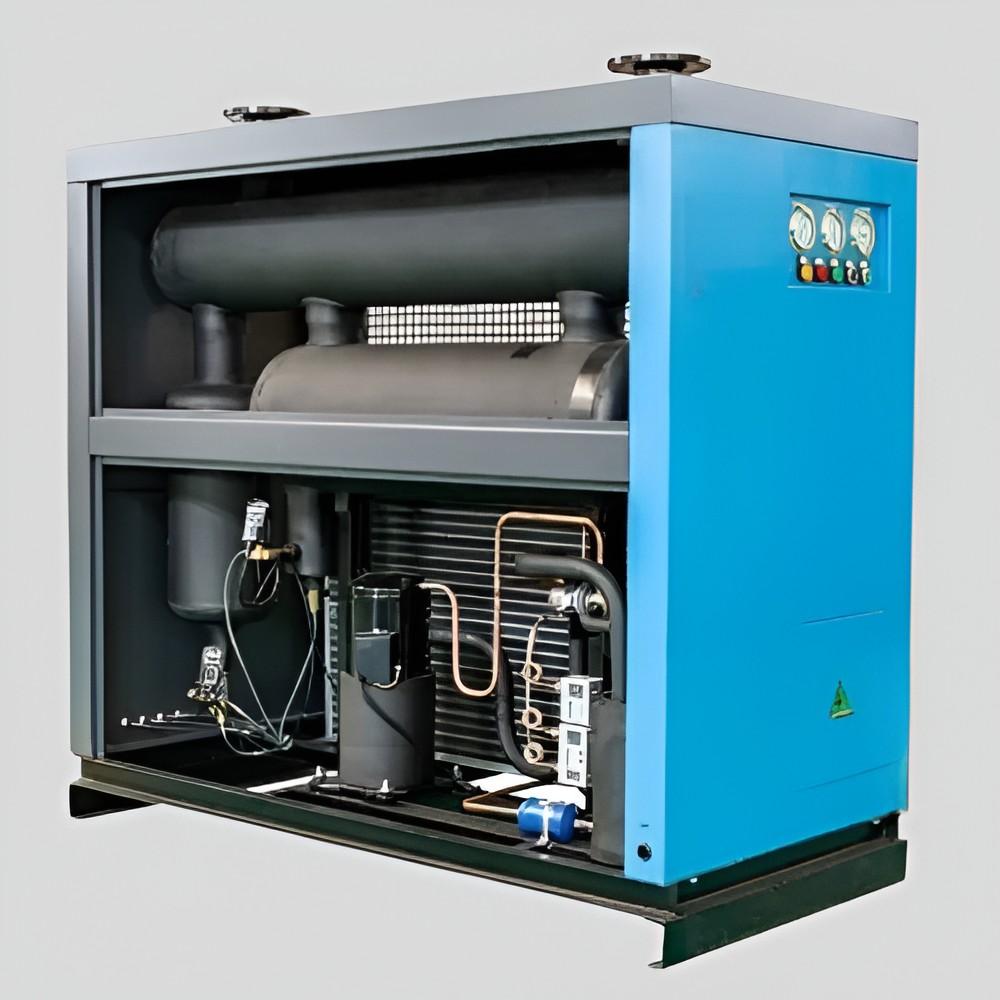

Refrigerated Type Air Dryer
The main purpose of the JOG Waste refrigerated air dryer is to remove the moisture in the form of vapor from.
The compressed air delivered by the compressor and prevent the equipment from failing by rusting, moisture causes rusting inside pipes and also damages the other process equipment caused by dripping of grease. The JOG Waste Refrigerated type air dryers are most well utilized in many industries for various applications. This type of dryer cools the air near the freezing point to remove the moisture and the compressed air is reheated by the incoming air to nearly 10 degrees C The compressed air is cooled in an air-to-refrigerant heat exchanger to about up to 4 degrees C, at this temperature water vapor in the air get condense and drained though drain pipelines. Air at lower temperatures is passed through incoming air for heat exchange to reduce load in the refrigeration system. With a refrigeration system pressure dew point can be achieved at 4 Deg C.
JOG Waste REFRIGERATED AIR DRYERS HAVE Several COMPELLING BENEFITS:
- Low initial cost
- High reliability, easy to use and maintain
- Extends the life of your compressor
- Energy savings
manufacturer and supplier
WHY THE NEED TO DRY AIR ?
Why do you initially require an air dryer? Because moisture, dust/dirt, and traces of oil are all present in compressed air when it exits a compressor. Before the air is compressed, these contaminants are present in the surrounding atmosphere. Then there are those that are included when data is compressed. In either case, these impurities have the potential to damage your entire air system, pneumatic tools, and finished goods.
Moisture by itself has the potential to harm your customers, taint the goods, and harm the compressor, air motors, and valves. Its negative impacts include microbe production, corrosion, and line freezing. The hazards associated with this moisture are eliminated using an air dryer.
TECHNICAL SPECIFICATION
WHEN TO USE A JOG Waste REFRIGERATED COMPRESSED AIR DRYER?
If the following criteria apply to your activities, chilled (refrigerated) air dryers are the best choice:
The outside temperature is below 50 °C/122 °F. Preventing condensation is the key objective. Moreover, the needed pressure dew point ranges from 3°C to 4°C (37°F to 39°F). Advantages of chilled compressed air dryers.
- Minimum Order Quantity : 1 No
- Capacity (cfm) : 20 to 50000
- Operating Temperature (°C) : 40
- Dew Point : Up to -10 (°C)
- Operation Pressure (Bar g) : 5 to 50
- MOC : SS/MS
